معرفی
جهت تشخیص حرکت در حداکثر فاصله 12 متر استفاده می شود. زاویه دید این ماژول حدود 360 درجه و خروجی آن دیجیتال می باشد.همچنین این ماژول قابلیت نصب فتوسل را دارد.
Description
RCWL-0515 is a microwave induction module that uses Doppler radar technology to specifically detect the movement of objects. Using 2. 7G microwave signal detection, the module has the characteristics of high sensitivity, long sensing distance, strong reliability, large sensing angle, wide supply voltage range and so on.
Microwave induction is a new type of induction mode without dead angles, based on the principle of Doppler radar. Its antenna emits electromagnetic waves and receives reflected echoes, which can effectively suppress the interference of higher-order harmonics and other clutters; it has strong reliability, safety and convenience.
Compared with infrared products: the microwave switch has a longer sensing distance, a wide angle, no dead zones, can penetrate glass and thin wooden boards, and can penetrate walls of different thicknesses according to different powers, and is not affected by environment, temperature, dust, etc., at 37 In the case of degrees, the sensing distance will not shorten. Widely used in various human induction lighting and anti-theft alarm and other occasions.

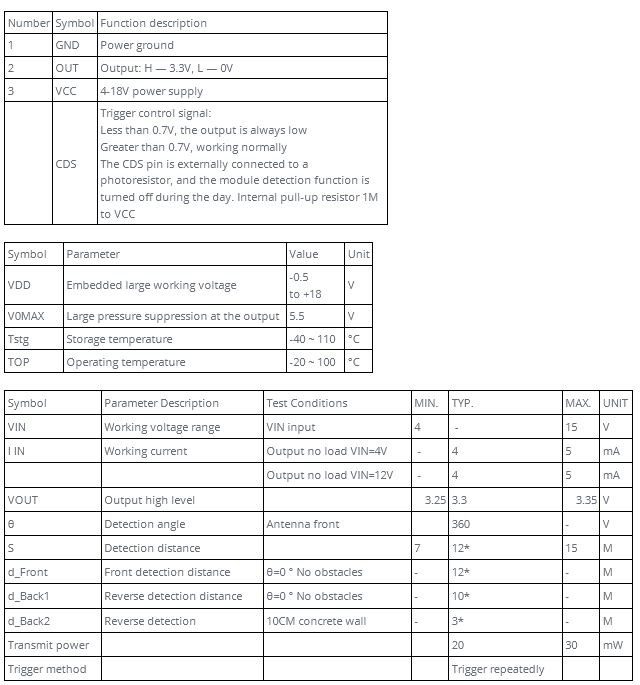

Features
Working voltage: 4-18V
Working current: 4mA
Working frequency: 2.7G
Reserved patch and in-line CDS interface
12 meters typical sensing range
Adjustable sensing distance
Lead-free process
Adjustable repeat trigger time
Size: 24 × 17 × 2.8mm
Weight：1.1g
Application
1. Corridor lights, sensor lights, solar lights
2. UV disinfection lamp
3. Human body motion sensing
Use attention
1. There must be no metal shielding directly in front of the sensing surface.
2. Reserve more than 2cm space in front of and behind the sensing surface. If the application sensitivity is very high, it is recommended to reserve a distance of more than 4cm, and the blocking space behind the module should be as small as possible.
3. The module and the mounting carrier plane are as parallel as possible.
4. Microwave modules cannot be applied on a large scale in the same area, otherwise mutual interference will occur, and the distance between individual bodies is preferably greater than 1m.
