Introduction:

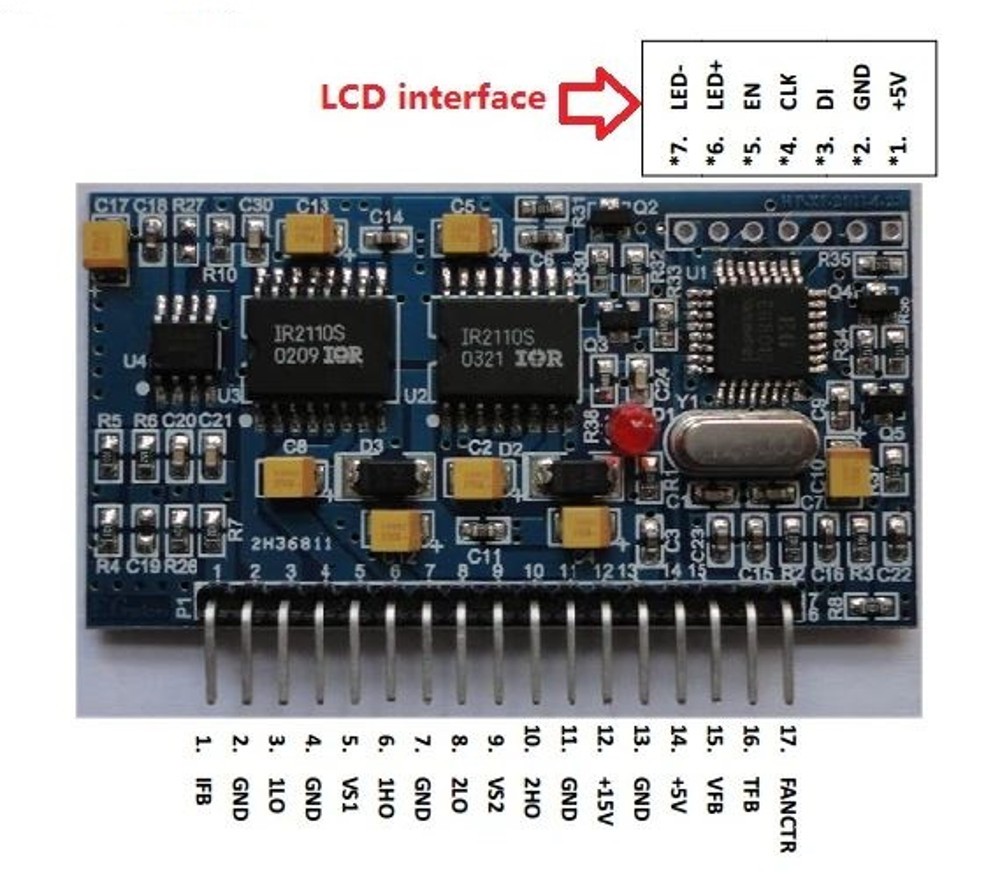

The EG8010 is digital, a function very well its own control of the dead time sinusoidal inverter chip generator, used in two stages DC-DC-AC structure energy conversion or single-stage DC-AC Industrial transformer Boost architecture, external 12 MHz crystal oscillator, to achieve high accuracy and the harmonic distortion is very small, 50 Hz or 60 Hz pure sine wave inverter ASIC. The chip uses CMOS technology, SPWM internal integration, a sinus generator, a dead time control circuit, a multiplier ratio range, a soft start circuit, a protection circuit, an RS232 serial interface, and a serial LCD display of the function driver module 1602.
Features:
Power supply 5 V
4 pin set of pure sine wave output frequency:
50 Hz Pure sine wave fixed frequency 60 Hz Pure sine wave fixed frequency 0-100 Hz
Pure Sine Wave Adjustable 0-400 Hz Pure Sine Wave Adjustable
Unipolar and Bipolar Modulations
Comes with deadband control, pin 4 dead time:
300nS dead time 500nS dead time 1,0us dead time 1,5us dead time
External crystal oscillator 12 MHz
PWM carrier frequency 23.4 kHz
, Current temperature real-time feedback
overvoltage, undervoltage, overcurrent and overheat protection
Soft start mode pin response time setting 1 s
Serial connection for setting output voltage, frequency and other parameters
External serial module 1602 displays the inverter
Information on voltage, frequency, temperature and current
Applications:
Single-phase pure sine-wave inverter
PV inverter
Wind Inverter
Uninterruptible Power UPS Systems
System digital generator
If power
Single-phase motor speed regulator
Single-phase inverter
Sine wave dimmer
Sine wave regulator
Sine wave generator
